trent
3rd gear


Joined: 08 Jun 2007
Posts: 434


Location: Orlando, FL
PostPosted: Fri Mar 31, 2017 2:28 am  Reply with quote

OK received the bike the other day as I was loading the last of my 3 bikes I sold on eBay recently, so the garage wasn't empty for long!!

Good bits: Bodywork is nice and unfaded but has some scratches and a few dings.
I will send it out to Left,Center,Right Triples CT to fix and blend original paintwork.
Front end is mint. Every nut bolt and washer is original never been apart. Frame/swingarm looks mint apart from RH foot peg bent in a bit.

Bad Bits: Engine was locked. Carbs are mint and in good condition.
Got heads off, mucho oil penetrant still locked. Got cylinders off they look great albeit lots of gunk. Engine still locked. Got a spanner on CDI nut and it freed off but looks dirty in there and center piston skirt was very badly damaged  Neutral cylinder looks fine though. Exhausts are great condition except each has the usual road rash flat spots on the bottom.

So looks like a full resto instead of clean up as is.

Good news is Stevey boy has a million of pics of his resto and I don't need to worry about that. mine wont be a 100 point resto like Schumi but I intend to get her looking like a nice say 10K bike back in the day I think is the best way to go.......but who knows what do you think?
Also any crank and exhaust guru's in the U.S or are they all back in the UK?

Rgds Steve
View user's profile Send private message
trent
3rd gear


Joined: 08 Jun 2007
Posts: 434


Location: Orlando, FL
PostPosted: Thu May 11, 2017 1:24 pm Reply with quote

Well some down time and started dismantling and now down to bare frame with everything catalogued and bagged up.
The plan for this bike is now clear. The engine will be rebuilt completely due to the seized center cylinder.
Everything else is just being cleaned, hand polished and put back together to keep it completely original down to the last bolt and washer.
Everything I clean comes up like new, the chrome cleans up beautifully but still has that original look, so much better than triple plated over restored look parts get when rechromed. Frame / swing arm stands come up beautifully with a few nicks here and there that just makes it look better. So thats the plan will post some pics later.
Paint is at Left Center Right in Connecticut and they are restoring the original paint scratches etc being sorted looking forward to see how that comes out.
View user's profile Send private message
Schurminater
5th gear


Joined: 25 Apr 2010
Posts: 2464


Location: Surrey Hills
PostPosted: Sun May 14, 2017 12:09 pm Reply with quote

Sounds like a good plan matey Exclamation .....don't forget the pictures Cool
View user's profile Send private message
trent
3rd gear


Joined: 08 Jun 2007
Posts: 434


Location: Orlando, FL
PostPosted: Thu Jun 29, 2017 9:18 am Reply with quote

Schurminater wrote:
Sounds like a good plan matey Exclamation .....don't forget the pictures Cool

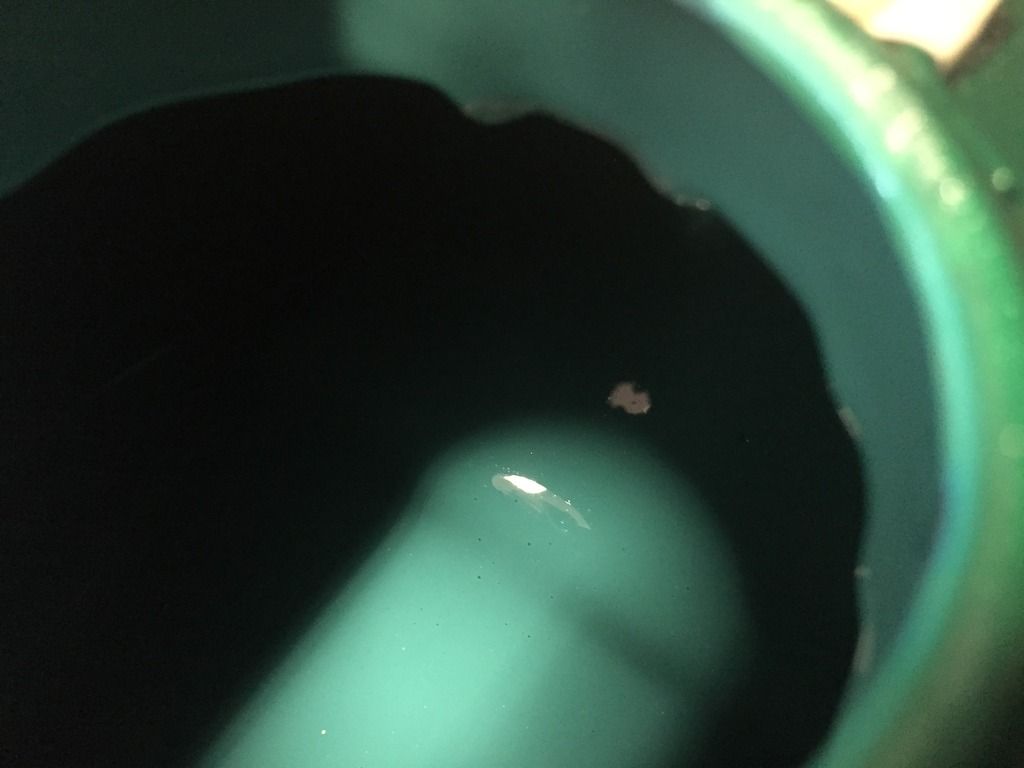

Paint has had its first clear coat.....LCR said they could blend in and try and match original paint but there were more dings and dents and paint inconsistencies near decals etc that a repaint would be a much better outcome. While it was down to metal I also had it re protected and Caswelled inside. Each paint set gets put into mounting jig and index points made for stripes and letters. they are then drawn in cad program cut checked and adjusted until they match. All stripes and letters are paint not decals which is amazing. After more clear coats it should be with me next week.









View user's profile Send private message
olde coney
tankin it !!!!


Joined: 21 Nov 2009
Posts: 3029
Location: NORTHERN IRELAND


Location: Northern Ireland
PostPosted: Thu Jun 29, 2017 12:18 pm Reply with quote

WOW ! loverly job  Exclamation
_________________
There's a difference between knowing your shit and knowing you're shit
View user's profile Send private message
zytec
4th gear


Joined: 18 Jun 2008
Posts: 798


Location: Wrexham, Wales
PostPosted: Thu Jun 29, 2017 8:43 pm Reply with quote

Great results  Exclamation
_________________
The black dog is finally walking away but so far not quickly enough !



View user's profile Send private message
Binetta Steve
1st gear


Joined: 09 Dec 2016
Posts: 76


Location: East Lancs
PostPosted: Thu Jun 29, 2017 11:08 pm Reply with quote

That is a truly stunning looking paint job, Im sure it wasn't cheap but you will look and cherish it for many years
View user's profile Send private message
Schurminater
5th gear


Joined: 25 Apr 2010
Posts: 2464


Location: Surrey Hills
PostPosted: Fri Jun 30, 2017 12:32 pm Reply with quote

Lovely looking job Steve you must be pleased with that,........What is happening with the filler ring?......have they removed it,i haven't seen that off before Question

keep us posted  Cool
View user's profile Send private message
trent
3rd gear


Joined: 08 Jun 2007
Posts: 434


Location: Orlando, FL
PostPosted: Fri Jun 30, 2017 4:46 pm Reply with quote

Hi Steve,
Yes they said they sort the filler ring out before they send them back that's how they do it I guess. Should be killer with some more coats of clear on it.
They will be doing my Red KH250A5 set as well as part of a "job lot" if I'm happy with the KH400 which looks good to me so far !!
View user's profile Send private message
trent
3rd gear


Joined: 08 Jun 2007
Posts: 434


Location: Orlando, FL
PostPosted: Sat Jul 29, 2017 5:06 pm Reply with quote

OK bad news is crank doesn't look good, one web/journal/rod very rusty will have crank builder assess it.
Gearbox bad selector forks burned and worn/discolored, dogs worn/discolored must have had a very hard 10K miles. Luckily I have a 2K g/box from my NOS S1C rebuild that I can swap out the bad parts for hopefully.
Does anyone here re-use the G/box ciurclips or do you buy new ones? Have been looking they seem pretty hard to get hold of looking at evil bay and Partzilla.
Cases are off to vapor blasters lets hope they come back nice and clean we'll see.
Cleaning up rust on rear shocks at the moment coming out very nicely will post some pics shortly......
